Label Printing Scale


  • Product No.: CLS-B

Details

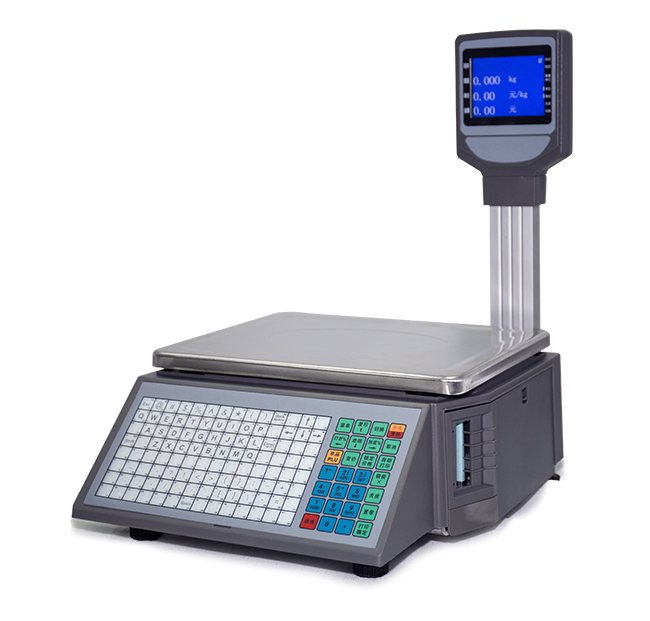

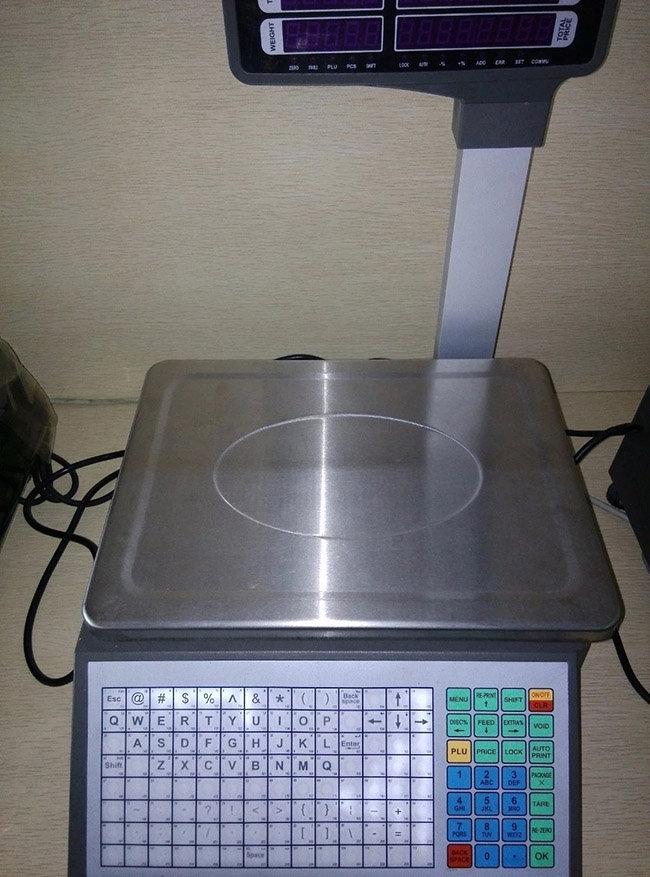

Label Printing Scale CLS-B


Function & Features:

Big storage capacity: 10000 PLUs data storage capacity, plus extra storage option.
Powerful data processing: 224(112×2) PLUs Hot-Key, Programmed and printed in PC.
Various special selling modes: Discount in percentage or coupon; Additional charge in percentage or other extra charge; Change price anytime etc.
Different type of selling: Weighing, Default price, Default price and weight selling.
Powerful network communication: program setting, multiple-machine networking, back-office management via either RS-232 or Ethernet(TCP/IP).
Easy programming: PLUs database, Label code format, system parameters, Hot-Keys, 8-letter strings, 255 explanations to be edited in PC or directly in scale.
Convenient label code formatting: label code and printing setting to be customized.

Parameters:

ITEM

PARAMETERS

Precision

1/3000

Weight Scope

0-6Kg-15Kg or 0-15-30Kg

Weight Resolution

2/5g or 5/10g

Storage Capacity

10,000 PLUs

Display

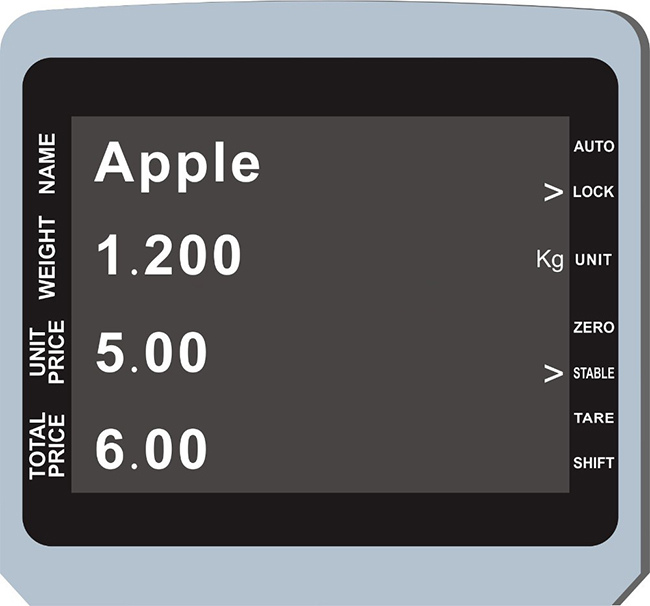

Double sides displays with the pole: 4-inch LCD, 320×240 dot matrix.

Keyboard

140 keys(112×2=224 PLUs Hotkeys, 28 Function keys)

Printing Type

Thermal Printing, Printing Speed: >50mm/s, Printing Width: 56mm(Max).

Paper Roll Width

58mm±0.5(Max)

Label Size

Width: 30mm-58mm, Length: 25mm-48mm. Recommended Label Size: 58mm(W)×37mm(L)

Paper Roll Outer Diameter

80mm (Max)

Paper Roll Internal Diameter

42mm (Min)

Ports (Standard)

1×RS232, 1×RJ45 Ethernet

Ports (Optional)

None

Power Input

AC100-120V or AC200-240V 50/60Hz, 0.5A

Battery Inside

None

Dimension(mm)

360 (W)×440 (D)×175 (H) (the height is 490mm including display pole)

Net Weight

About 8.5Kg

Work Environment

Temperature: -10~40; Humidity: 20%~85% RH

Storage Environment

Temperature: -20~50; Humidity: 10%~95% RH
