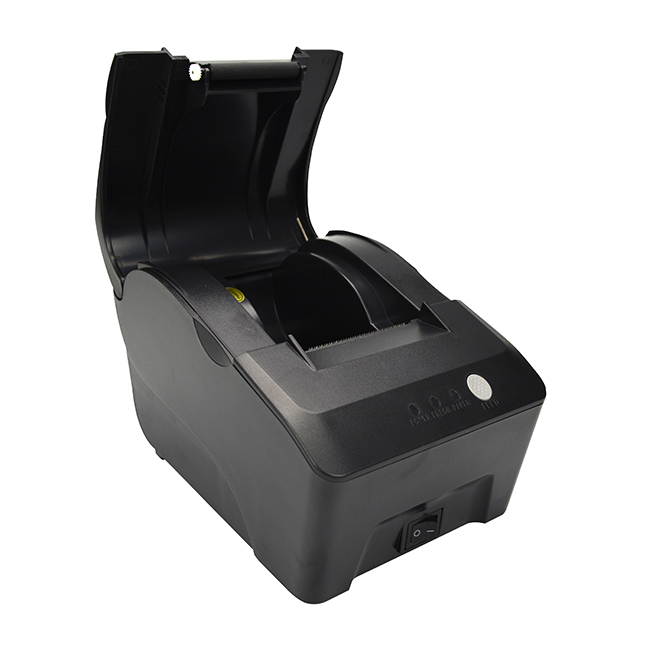

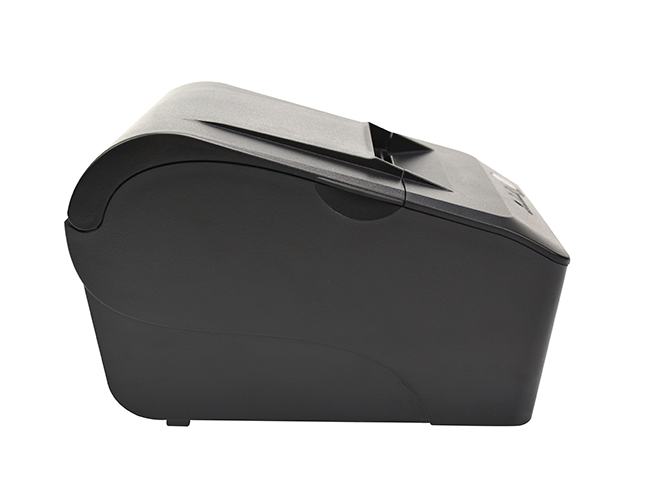

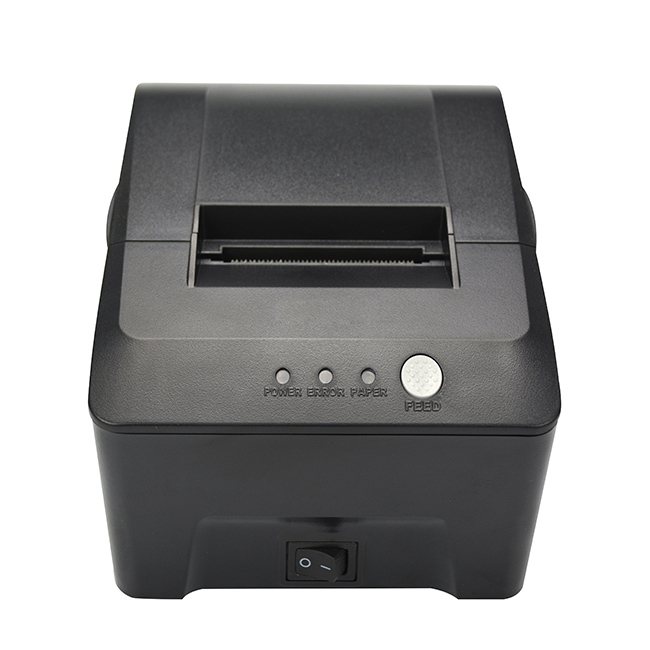

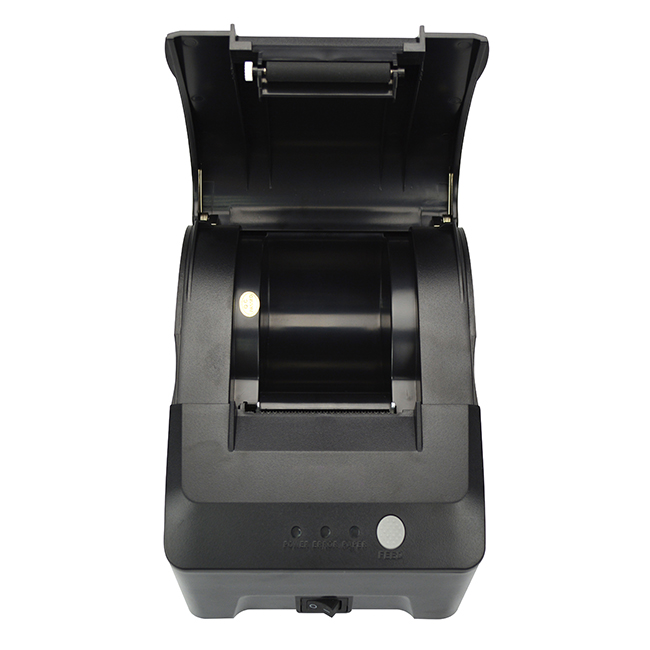

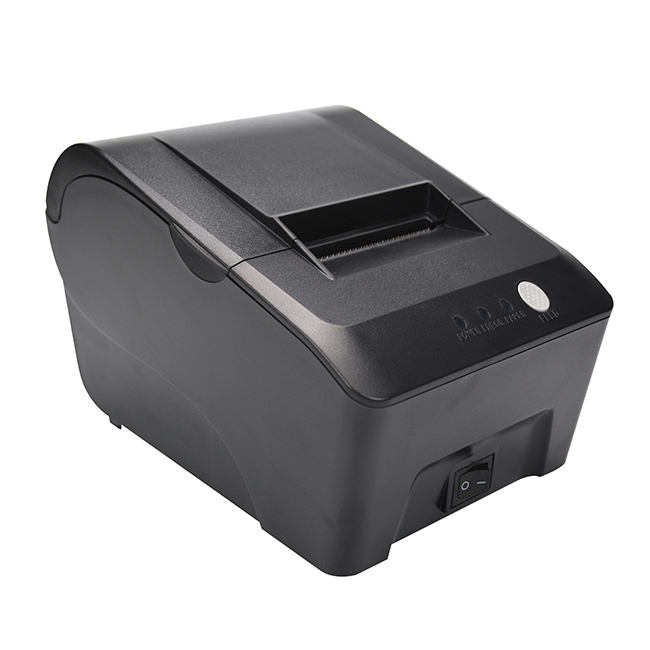

58mm thermal receipt printer CP582
Features:
1.Exquisite design and easy to use
Parameter:
|
Print |
Printing Method |
Direct Thermal Printing |
|
|
Printing Speed |
Max. 100mm/s |
||
|
Resolution |
8 dots/mm, 384 dots/line |
||
|
Effective Printing Width |
48mm |
||
|
Character |
Character Set |
GB2312, 16x16dots, or 24x24dots |
|
|
Character |
8x16dots, or 12x24dots，9x17dots |
||
|
Character per Line |
32 |
||
|
Paper Spec |
Paper Type |
Thermal paper |
|
|
Paper Width |
57.5± 0.5mm |
||
|
Paper Roll Diameter |
Max: 83.0mm |
||
|
Roll Core Inner Diameter |
13mm(min.) |
||
|
Paper Thickness |
0.06 to 0.07mm |
||
|
|
Paper out detection |
Support |
|
|
Paper Supply Method |
Drop-in Paper Load |
||
|
Reliability |
MCBF(MCBF) |
5 million lines |
|
|
Printer Head Life |
>50km Printing length |
||
|
Bar code type |
125, UPC-A, UPC-E, EAN-8, EAN-13, Codebar, Code39, Code93, Code128, Code11, MSI |
||
|
Emulation |
ESC/POS |
||
|
Driver |
Windows98/2000/NT/XP/7/8/VISTA |
||
|
Drawer Port |
1 Port |
||
|
Interface |
RS-232, Parallel, USB |
||
|
Input Power |
12V，2A |
||
|
Cash box control |
12V, 1A |
||
|
Physical |
Net Weight |
400g |
|
|
Gross Weight |
1.0kg |
||
|
Printer Dimension (WxLxH) |
210mm(L)x135mm(W)x126mm(H) |
||
|
Application |
Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Super market |
||
