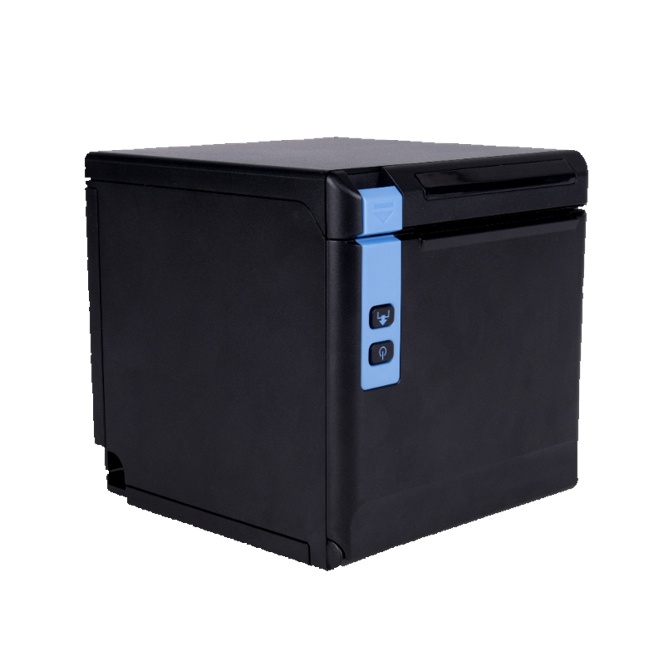

3 Inch High-end Cubic Thermal receipt Printer

Item

Parameter

 Printing

 Print Method

 Direct Thermal

 Resolution

 203 dpi (8 dots/mm)

180dpi emulated

 Print Speed

 Max. 260 mm/s

 Printing Width

 72 mm

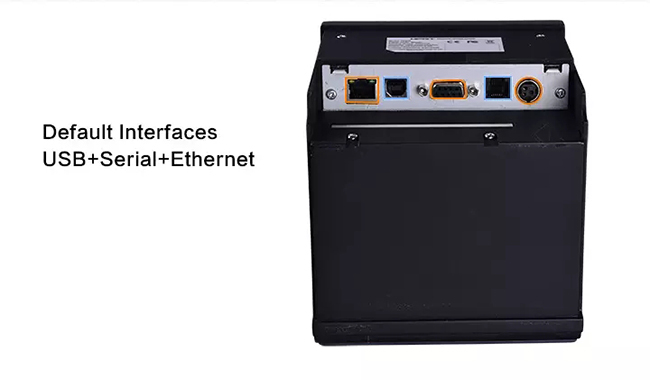

 Interface

 Standard

 USB Type B, Serial Port, Ethernet

 Optional

 Bluetooth, Wi-Fi

 Page Mode

 Support

 Memory

 RAM

4 MB

 Flash

 4 MB

 Fonts

 Chinese

 GBK 24x24dots

 Alphanumeric

 ASCII 9x17, 12x24dots

 Usder-defined

 YES

Codepage

 46 International Character Sets

 Barcode

 1D Barcodes

 UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93

 2D Barcodes

 PDF417, QR code

 Graphics

 Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 64 KB, the total size of bitmap is 256 KB)

 Sensors

 Standard

 Paper out Detector, Head up Detector

 Option

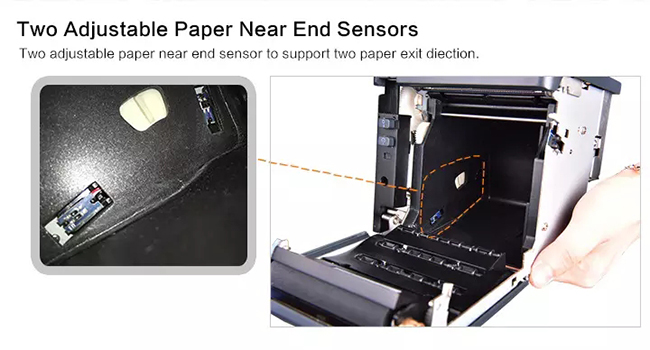

 Paper near end sensors, Black mark Detector

 Reliability

 TPH life

 150 km

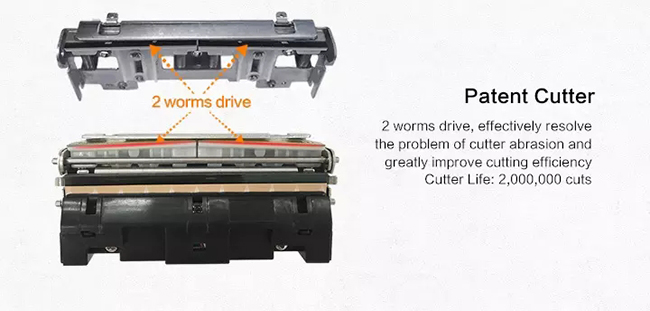

 Cutter

 2 million cuts

 Power Supply

 Input

 AC 100V ~ 240V, 50/60Hz

 Output

 DC 24V, 2.5A

 Paper

 Paper Type

 Thermal Receipt Paper

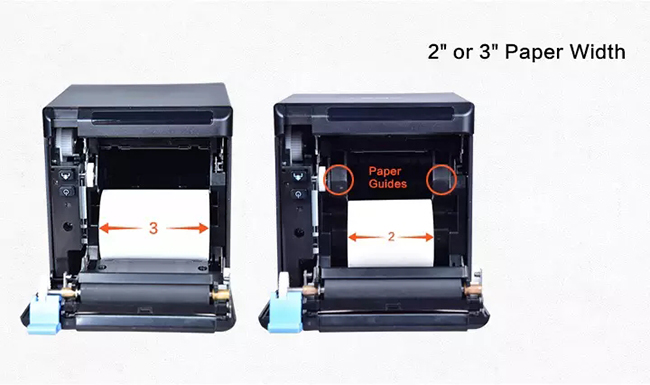

 Paper Width

 Max. 80mm

 Paper Thickness

 0.056 ~ 0.13mm

 Roll Paper Diameter

 Max. Φ83 mm (O.D)

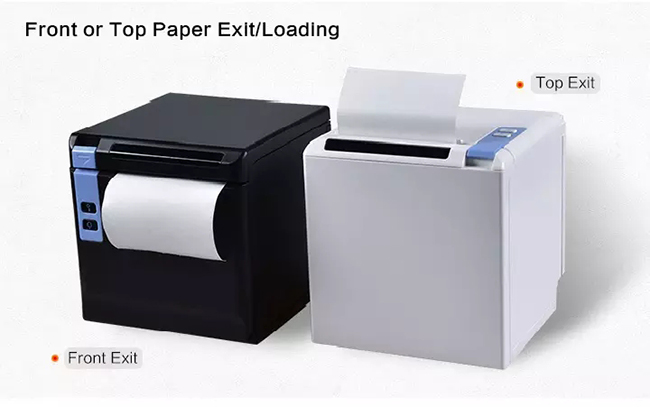

 Paper Load

 Top paper loading

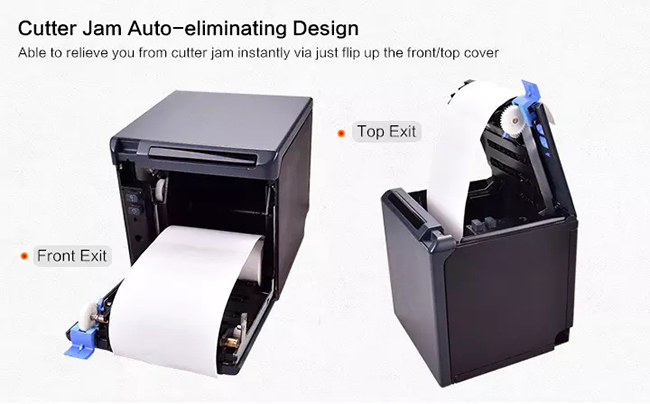

 Paper Cut

 Partial cut or Full cut

 Environment

 Operating

 0°C ~ 45°C, 20% ~ 85% R.H, no-condensation

 Storage

 -20°C ~ 70°C, 5% ~ 95% R.H, no-condensation

 PhysicalCharacteristics

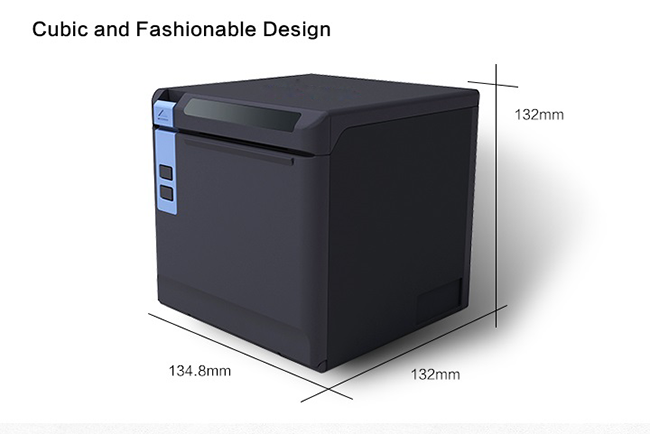

 Dimensions

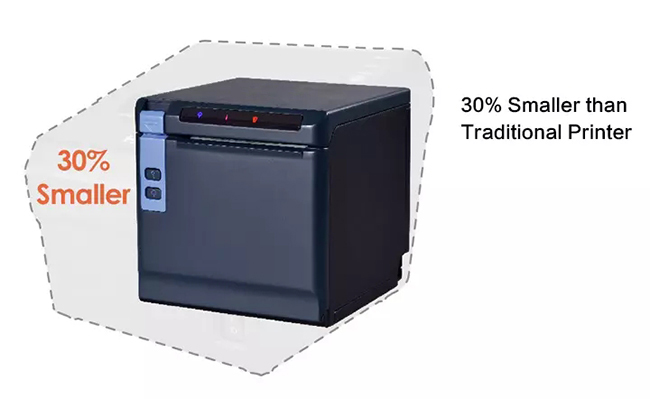

 134.8(L)×132W)×132(H) mm

 Weight

 1.37 kg

 Options and Accessories

 USB/Serial Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide

 Software

 Programming Language

 ESC/POS

 Driver

 Windows 2000/XP/ 7/ 8/ 10; POS Ready; Linux; OPOS

 SDK

 WinCE, Windows Mobile, Android, IOS
