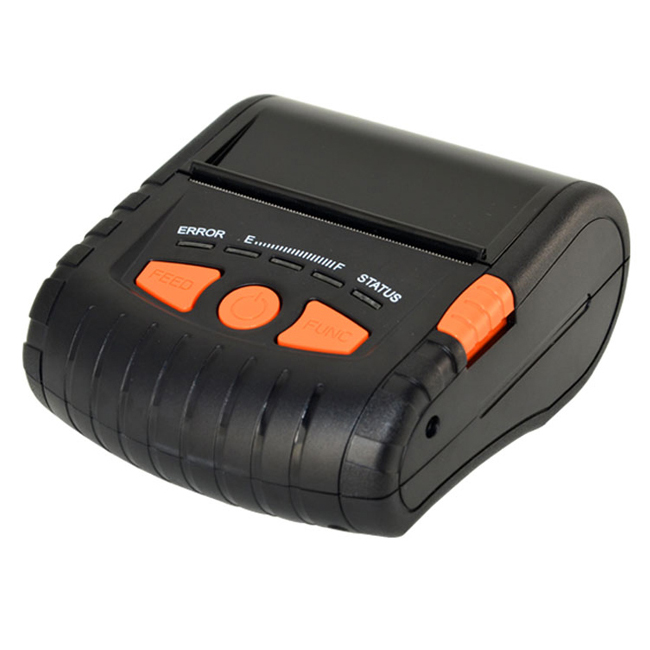

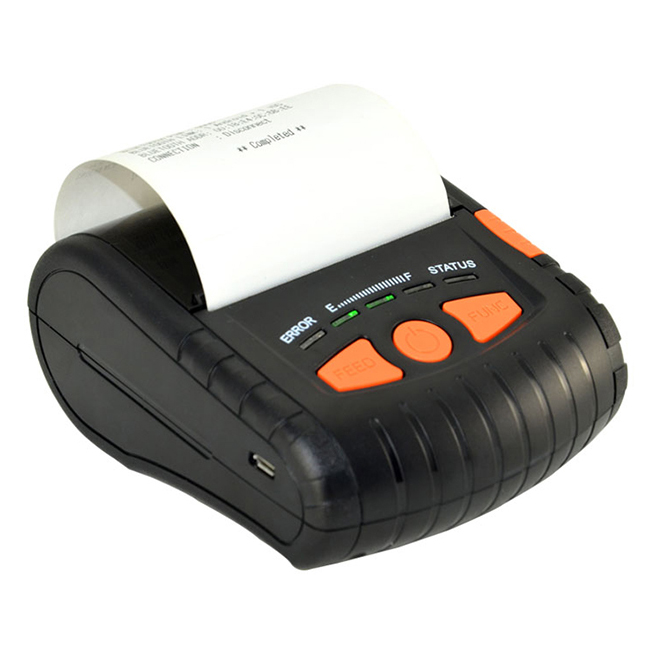

80mm mobile printer
Feature:
Drop in paper loading, easy operation.
Thermal Paper: width 80mm, diameter 50mm, thickness 0.06~0.08mm
Lithium battery: 2200mAh/7.4V, 7days standby time.
Power adapter: 9V-1A, AC100-220V
Low-power mechanism.
Interfaces: USB+Bluetooth, USB+WiFi (Optional)
Support Android, iOS and Windows system.
ESC/POS commands.
Support 1D barcode, QR barcode.
Specification:
|
Printing |
Print method |
Direct thermal line |
|
Dot density |
576dot/line |
|
|
Print width |
76mm |
|
|
Print speed |
60mm/s (Max) |
|
|
Interface |
USB+Bluetooth3.0/BLE4.0 (Standard) |
|
|
USB+WiFi (Optional) |
||
|
Paper width |
80mm |
|
|
Paper diameter: |
50±0.5mm |
|
|
Paper thickness |
0.06~0.08mm |
|
|
Print commands |
Compatible with ESC/POS |
|
|
Fonts |
GB18030, Big5, Korean |
|
|
Barcode |
Character Size |
ANK Font: FontA: 12*24dots |
|
FontB: 9*17dots |
||
|
Simplified/Traditional Chinese Character, Korean: 24*24dots |
||
|
Barcode mode |
UPC-A,UPC-,EAN(JAN)13,EAN(JAN)8,CODE39, |
|
|
CODABAR,ITF,CODE93,CODE128, QR Code |
||
|
Code page |
PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151,1251, PC747, Vietnam, Uygur, Thai |
|
|
Command |
Compatible with ESC/POS |
|
|
Buffer |
Data |
4K bytes |
|
NV Flash |
60K bytes |
|
|
Physical properties |
Dimension |
131*107*58mm |
|
Weight (including battery) |
350g |
|
|
Power |
Power adaptor |
Input: AC100-220V output: DC9V/1A |
|
Lithium battery |
2200mAh/7.4V |
|
|
Charge period |
3.0~5.0h |
|
|
Environment |
Work environment |
Temperature: 0~45℃, Humidity: 10~90% |
|
Storage environment |
Temperature: -10~50℃, Humidity: 10~90% |
|
|
Reliablity |
Mechanism |
50KM |
|
Others |
Environment |
Android, iOS, (Win9X/Win ME/Win2000/WinNT/WinXP, WinVista, Win7, Win8, Win10, Linux) |
|
language |
Japanese, Portuguese, French, Greek, Hebrew, Cyrillic, Iran, Latvian, Arabic, Ukrainian, Thai, Vietnam ect |
|
|
Paper supply method |
Drop-in paper loading |
