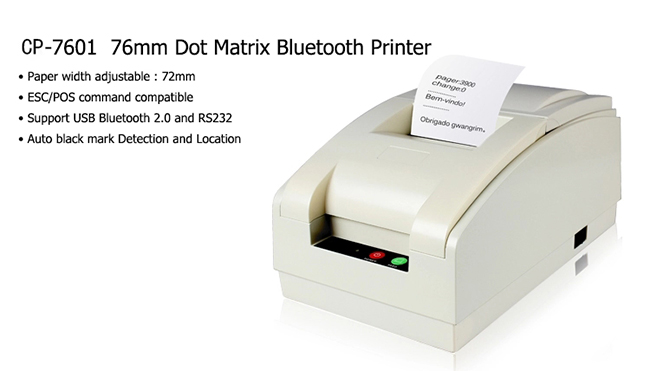

76mm Dot matrix impact printer
Application Fields:
1.Supermarkets, clothing industry
2.Bank POS
3.Logistics/Warehouse
4.Police, postal services, urban management, tobacco
5.Business cash registers
Technical specifications:
|
Adapter |
Input AC 110V-240V Output DC 24V-2A |
|
Printing life |
1.5million lines |
|
Weight |
1.65KG |
|

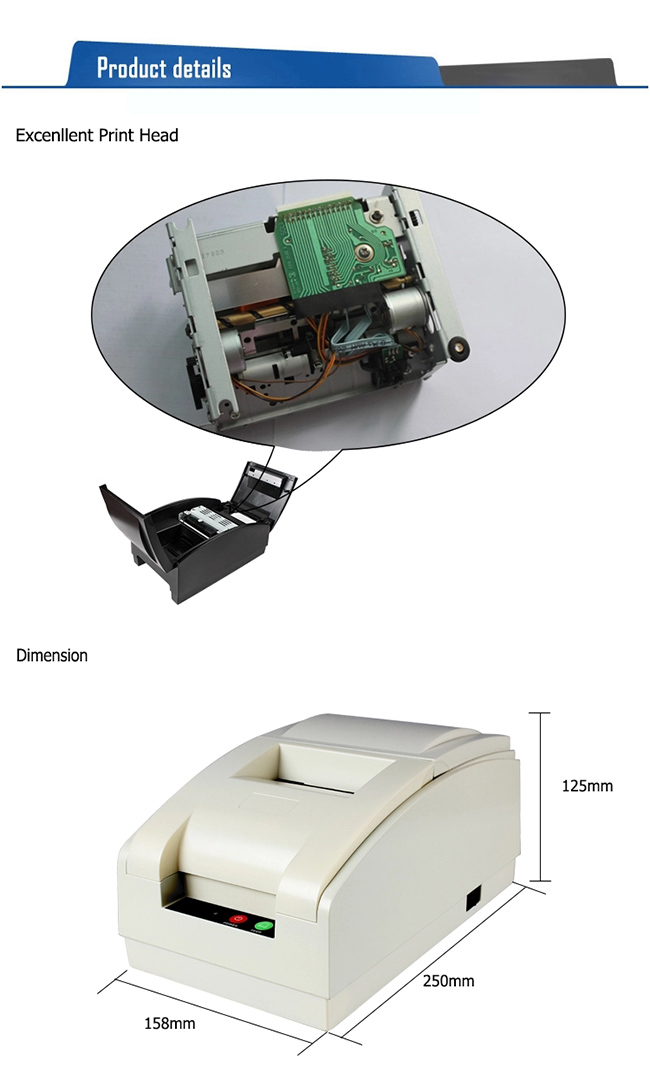

Size |
258mm*158mm*158mm |
|
Net weight |
200g |
|
Package weight |
500g |
|

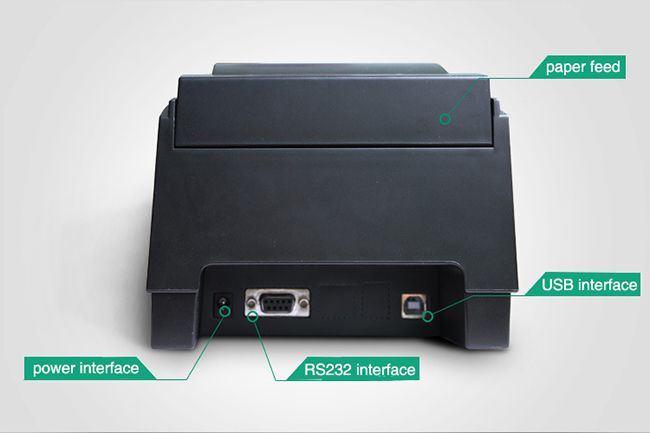

Communication |
|
|
Interface |
Bluetooth/USB 2.0/RS232 |
|
Bluetooth |
Bluetooth 2.0 |
|
Printing parameters |
|
|
Printing method |
9 needles Bi-directional printing |
|
Print Width |
72mm (24 Chinese characters/line 48 English words/line) |
|
Printing |
|
|
Printing Speed |
5.5MM/S |
|
Printer Width |
72mm |
|
Paper Width |
76mm |
|
Paper thickness |
0.06-0.08mm |
|
Sensor |
Double Black mark sensor ;low-energy;no-paper sensor |
|
Error Reminder |
No paper; door open ; print head over-heat |
|
Installed Character |
ASII (8*16 12*24 16*32 24*48 32*64) GB13080 (13*13 24*24 68*48) |
|
Instruction system |
POS/ESC |
|
Resolution |
5 dot /mm |
|
Paper Cut |
Manually |
|
System Language |
English/Chinese |
|
Support System |
Android/ IOS/Windows/Saipan/Win CE |
|
Paper type |
2 page copy paper |
|
Paper roll |
Max 50mm |
|
Environment |
|
|
Storage Temp |
-20℃--70℃ |
|
Humidity |
0-95% |
|

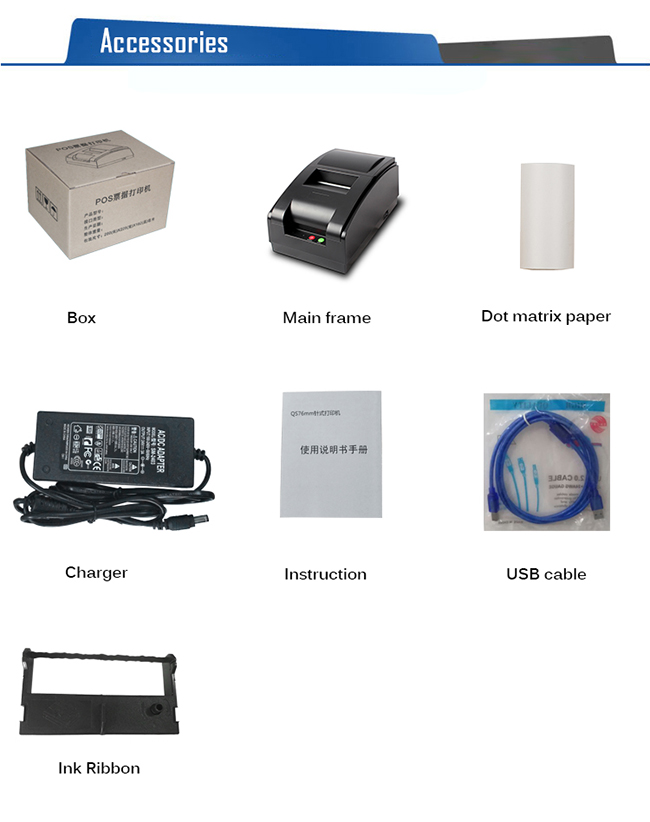

Packing List |
|
|
1* printer 1*adapter 1*USB cable 1* paper roll 1 box package |
|
