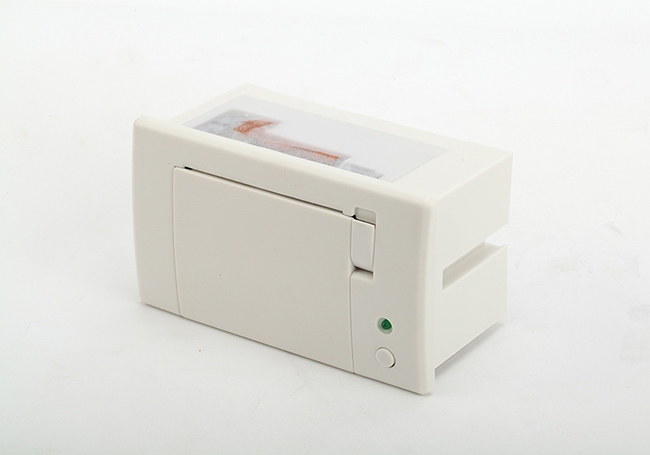

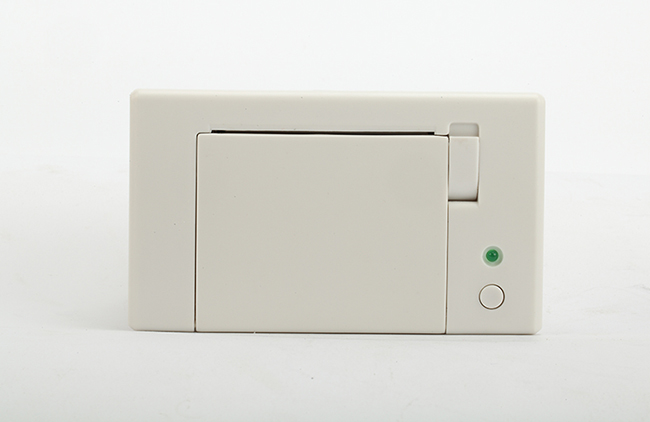

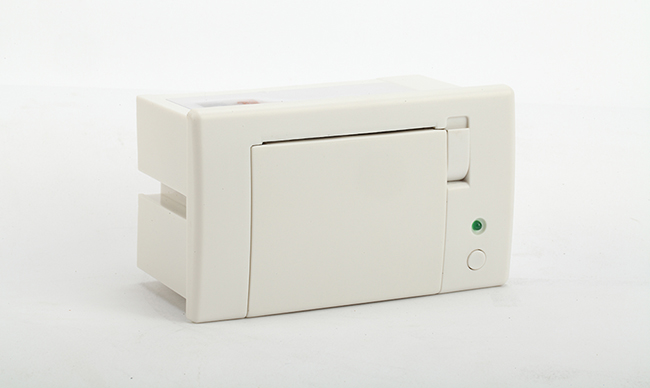

Taxi Billing Machine Panel Receipt Printer CP07
Taxi Billing Machine Panel Receipt Printer CP07
Main Features:
1.Fashionable ,delicate and elegant
2.Low noise direct thermal printing method
3.Paper out detection,automatic memory printing function
4. RS232/TTLl interface

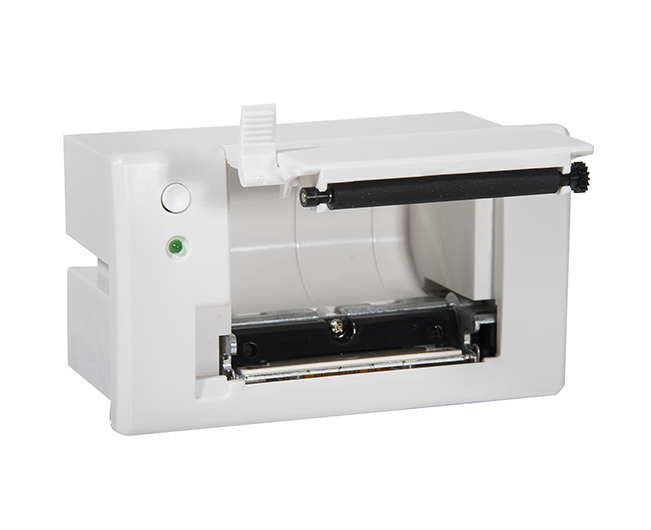

5.Easy paper loading
Detailed Specifications:
| Paper Working | Loading way | easy |
| Cutting way | divulsion(dentiform) | |
| Printer performance | Print method | direct thermal print and auto paper feed |
| Printing density | 384 dots/line | |
| 8 dots/mm | ||
| Printing width | 48 mm | |
| Max Printer Speed | 85 mm/s(max.) | |
| Dot distance | 0.125 mm | |
| Drawing/Bar code | Word size(WxH mm) | 0.75×1 |
| ASCII Character(WxH dots) | 16 lattice:8×16; 24 lattice:12×24 | |
| ASCII Size(WxH mm) | 16 lattice:1×2; 24 lattice:1.5×3 | |
| Drawing/bar code | suitable | |
| Testing Method | Lacking paper testing | photoelectricity sensor |
| Control System | Printer interface | TTL/RS232 |
| Buffer | 32k | |
| Command system | ESC printer command/WH printing command | |
| Power | Woking voltage | DC3.5V--9V (from7.2-7.5V,with highest speeed and excellent effect) |
| Current | 2.5-3A | |
| Printer Mechanism | Printing head lifespan | 50km |
| Paper | Paper item | thermal paper |
| Paper width | 58mm | |
| Papaer thickness | 65±5um | |
| Diameter of paper roll | 30mm | |
| Environment | Operating temperature/humidity | 0~50℃/10%~80% RH |
| Storage temperature /humidity | -20~60℃, 10%~90% RH | |
| Physics Specification | Dimension (WxHxD mm) | 103mm×57mm×57mm |
